Thermo Wrap™ Series
$52.50 – $4,200.00
Elevated Temperature Indication
Memory Color Change
Quick & Easy to Install
Self-Adhesive Design
Elevated Temperature Indication
24/7 Monitoring
Permanent Color Change
American made, globally trusted.
At IRISS, every inspection window is 100% conceived, designed, and built on American soil, embodying the innovation, quality, and consistency that define the cornerstone values of American manufacturing. Our deep roots in the United States reflect our commitment to ingenuity, hard work, and excellence—values that resonate with unions and industries alike. While proudly “Made in the USA” is at the heart of what we do, our mission extends far beyond. IRISS serves industries around the globe, delivering solutions that prioritize safety, sustainability, and resilience for an interconnected world. From our American foundation to our global reach, we are dedicated to creating a safer, stronger future for all.
Proudly Made in the United States
| Physical Properties | HCCW-70 | HCCW-90 |
|---|---|---|
| Adhesive Type | Acrylic | Acrylic |
| Carrier | Polyester | Polyester |
| Covering Film | Polyester | Polyester |
| Response Time | 2 to 5 seconds | 2 to 5 seconds |
| Color Change Material | Non-toxic, white crystalline solid on a black absorbent backing, adhered with acrylic adhesive |
Non-toxic, white crystalline solid on a black absorbent backing, adhered with acrylic adhesive |
| Activation Temperature | 70˚C / 158˚F | 90˚C / 194˚F |
| Tolerance | -/+ 1˚C | -/+ 1˚C |
| Recommended Storage | Store at room temperature & humidity (i.e. 16 to 27˚C/60 to 80˚F & 40 to 60% RH) |
Store at room temperature & humidity (i.e. 16 to 27˚C/60 to 80˚F & 40 to 60% RH) |
| Service Life | 5 years (if installed as per datasheet guidance) | 5 years (if installed as per datasheet guidance) |

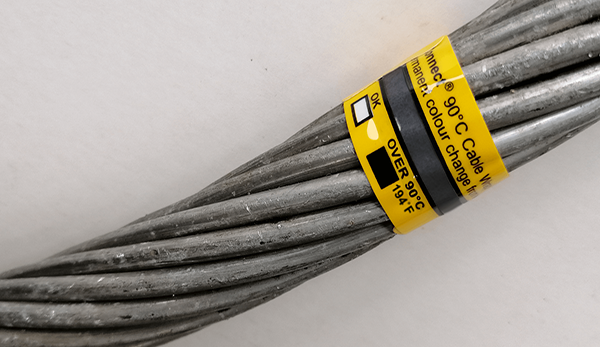

| Installation: Peel the Thermo WrapTM temperature-indicating label from the backing paper. Apply to a dust & grease free surface. If applying to a cable, perferably wrap the self-adhesive label around the bavle and back on top of itself. For indoor use only. | ||
| Caution: These labels are designed to use on electrical equipment and as such electrical safety must be assessed by a competent electrician prior to their application. | ||
